FLEXIBLE STEEL THAT REBOUNDS TO VERTICAL AFTER REPEATED IMPACTS

The Reflex, Flexible Steel Marker Post has the capability of rebounding to its vertical position after withstanding multiple direct vehicular impacts.

WHITE
YELLOW
BLUE
RED
ORANGE
GREEN
PURPLE

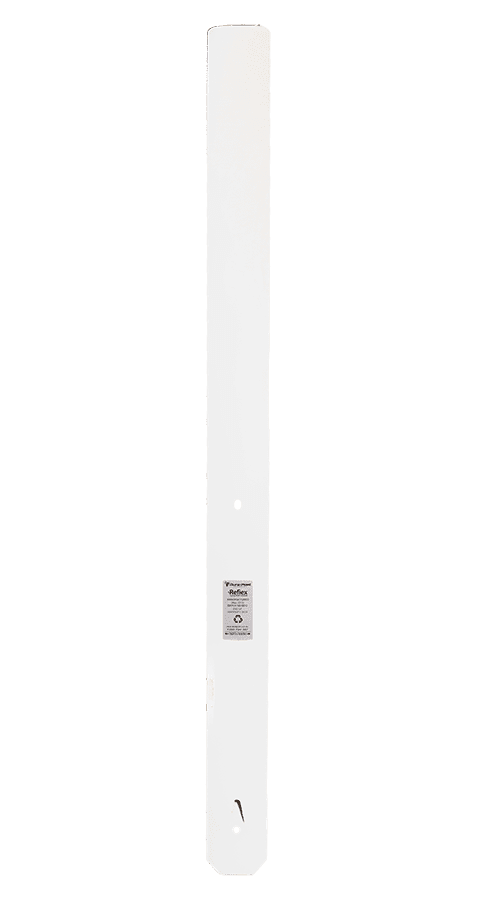

WHITE REFLEX MARKER POSTS > WHITE
CODE DESCRIPTION
FSP2300 BLAZE BLUE REFLEX STEEL MARKER POST 1400mm
FSP3250 HAWTHORN GREEN REFLEX STEEL MARKER POST 1400mm
FSP3000 SAFETY YELLOW REFLEX STEEL MARKER POST 1400mm
FSP3200 PURPLE REFLEX STEEL MARKER POST 1400mm
FSP3100 ORANGE REFLEX STEEL MARKER POST 1400mm
FSP3400 WHITE REFLEX STEEL MARKER POST 1400mm
FSP3300 FLAME RED REFLEX STEEL MARKER POST 1400mm
FSP3500 BLACK REFLEX STEEL MARKER POST 1400mm

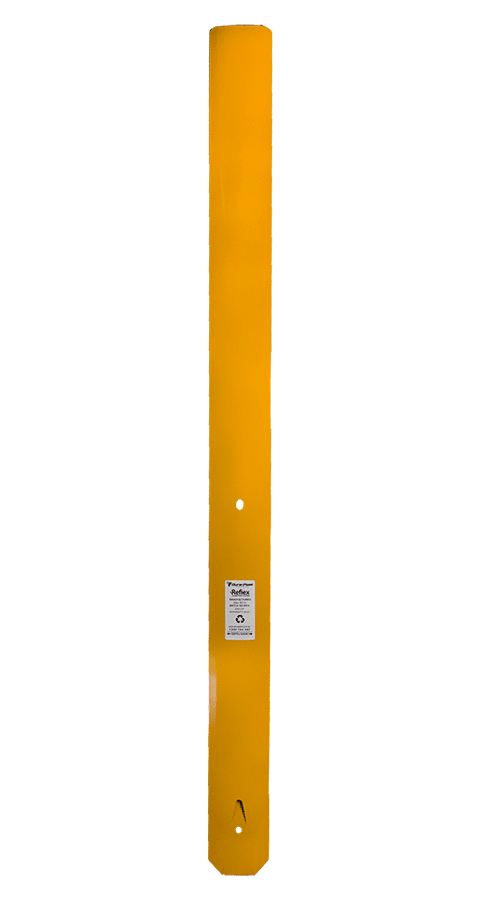

YELLOW REFLEX MARKER POSTS > YELLOW
CODE DESCRIPTION
FSP2300 BLAZE BLUE REFLEX STEEL MARKER POST 1400mm
FSP3250 HAWTHORN GREEN REFLEX STEEL MARKER POST 1400mm
FSP3000 SAFETY YELLOW REFLEX STEEL MARKER POST 1400mm
FSP3200 PURPLE REFLEX STEEL MARKER POST 1400mm
FSP3100 ORANGE REFLEX STEEL MARKER POST 1400mm
FSP3400 WHITE REFLEX STEEL MARKER POST 1400mm
FSP3300 FLAME RED REFLEX STEEL MARKER POST 1400mm
FSP3500 BLACK REFLEX STEEL MARKER POST 1400mm
BLUE REFLEX MARKER POSTS > BLUE
CODE DESCRIPTION

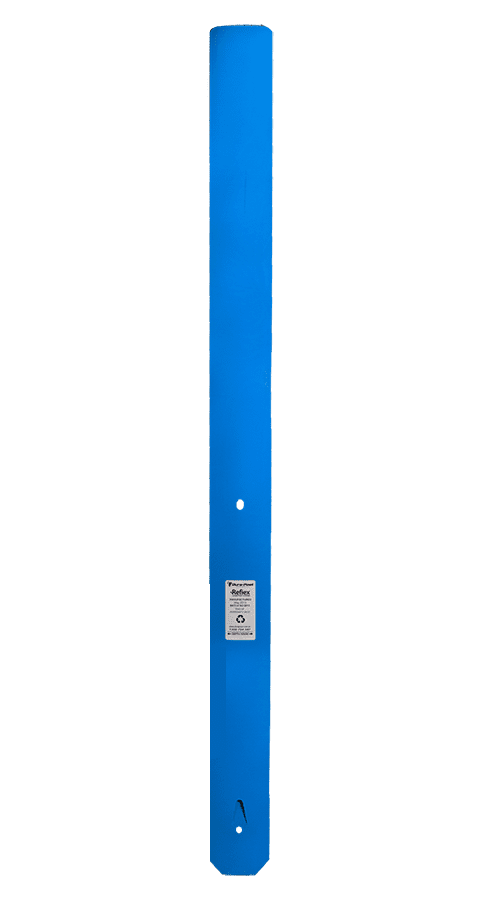

FSP2300 BLAZE BLUE REFLEX STEEL MARKER POST 1400mm
FSP3250 HAWTHORN GREEN REFLEX STEEL MARKER POST 1400mm
FSP3000 SAFETY YELLOW REFLEX STEEL MARKER POST 1400mm
FSP3200 PURPLE REFLEX STEEL MARKER POST 1400mm
FSP3100 ORANGE REFLEX STEEL MARKER POST 1400mm
FSP3400 WHITE REFLEX STEEL MARKER POST 1400mm
FSP3300 FLAME RED REFLEX STEEL MARKER POST 1400mm
FSP3500 BLACK REFLEX STEEL MARKER POST 1400mm

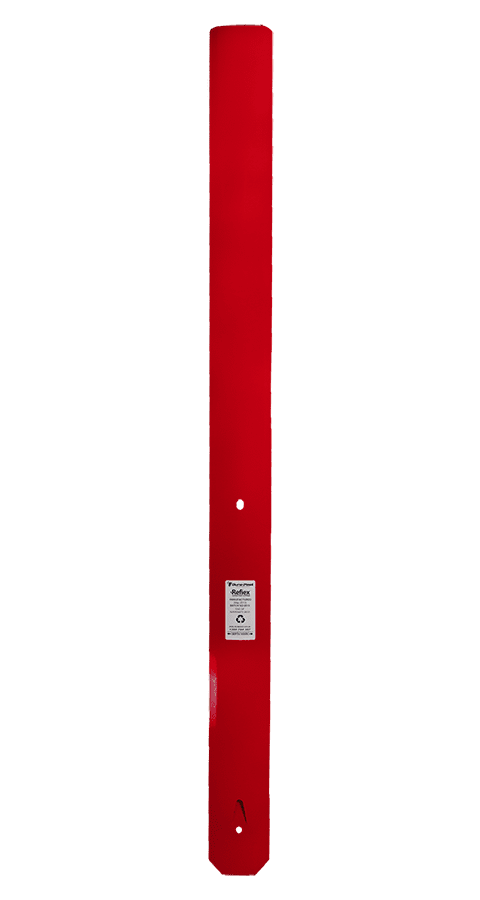

RED REFLEX MARKER POSTS > RED
CODE DESCRIPTION
FSP2300 BLAZE BLUE REFLEX STEEL MARKER POST 1400mm
FSP3250 HAWTHORN GREEN REFLEX STEEL MARKER POST 1400mm
FSP3000 SAFETY YELLOW REFLEX STEEL MARKER POST 1400mm
FSP3200 PURPLE REFLEX STEEL MARKER POST 1400mm
FSP3100 ORANGE REFLEX STEEL MARKER POST 1400mm
FSP3400 WHITE REFLEX STEEL MARKER POST 1400mm
FSP3300 FLAME RED REFLEX STEEL MARKER POST 1400mm
FSP3500 BLACK REFLEX STEEL MARKER POST 1400mm

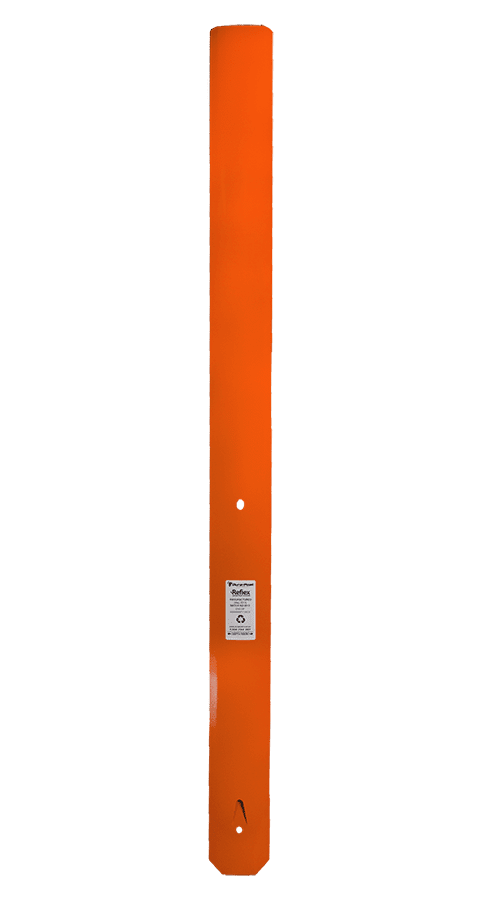

ORANGE REFLEX MARKER POSTS > ORANGE
CODE DESCRIPTION
FSP2300 BLAZE BLUE REFLEX STEEL MARKER POST 1400mm
FSP3250 HAWTHORN GREEN REFLEX STEEL MARKER POST 1400mm
FSP3000 SAFETY YELLOW REFLEX STEEL MARKER POST 1400mm
FSP3200 PURPLE REFLEX STEEL MARKER POST 1400mm
FSP3100 ORANGE REFLEX STEEL MARKER POST 1400mm
FSP3400 WHITE REFLEX STEEL MARKER POST 1400mm
FSP3300 FLAME RED REFLEX STEEL MARKER POST 1400mm
FSP3500 BLACK REFLEX STEEL MARKER POST 1400mm

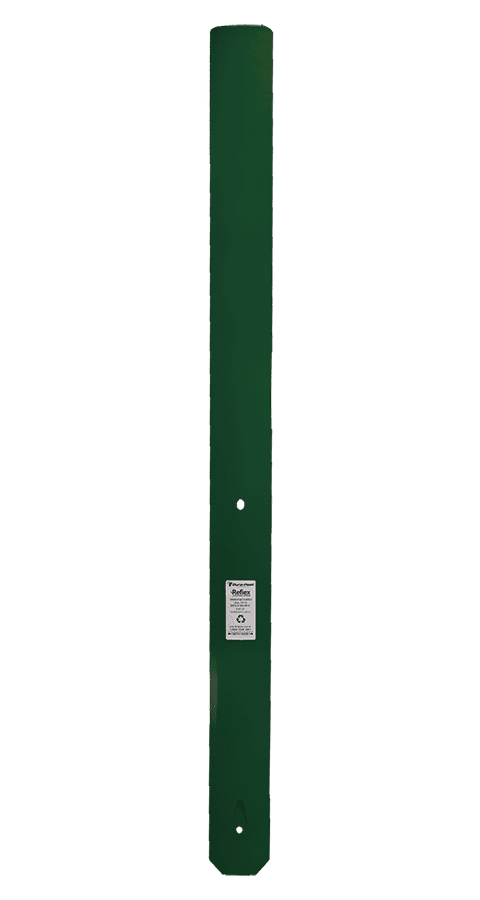

GREEN REFLEX MARKER POSTS > GREEN
CODE DESCRIPTION
FSP2300 BLAZE BLUE REFLEX STEEL MARKER POST 1400mm
FSP3250 HAWTHORN GREEN REFLEX STEEL MARKER POST 1400mm
FSP3000 SAFETY YELLOW REFLEX STEEL MARKER POST 1400mm
FSP3200 PURPLE REFLEX STEEL MARKER POST 1400mm
FSP3100 ORANGE REFLEX STEEL MARKER POST 1400mm
FSP3400 WHITE REFLEX STEEL MARKER POST 1400mm
FSP3300 FLAME RED REFLEX STEEL MARKER POST 1400mm
FSP3500 BLACK REFLEX STEEL MARKER POST 1400mm

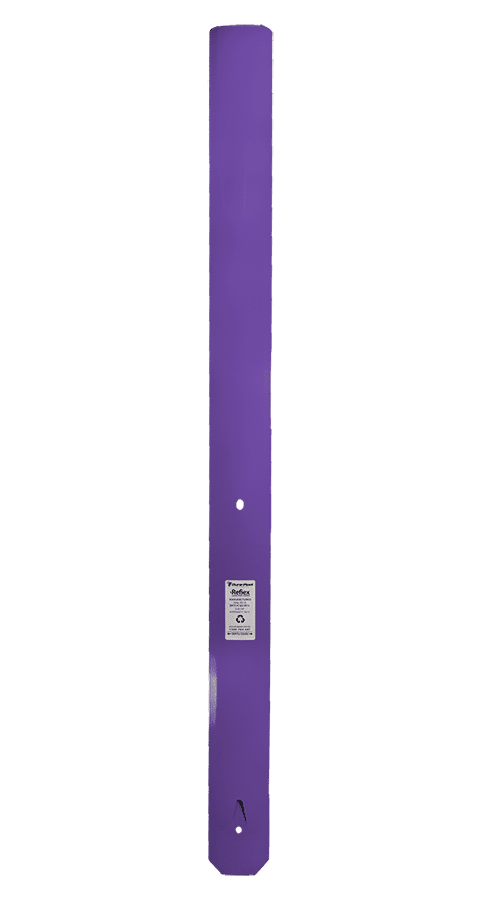

PURPLE REFLEX MARKER POSTS > PURPLE
CODE DESCRIPTION MOQ PLT
FSP2300 BLAZE BLUE REFLEX STEEL MARKER POST 1400mm
FSP3250 HAWTHORN GREEN REFLEX STEEL MARKER POST 1400mm
FSP3000 SAFETY YELLOW REFLEX STEEL MARKER POST 1400mm
FSP3200 PURPLE REFLEX STEEL MARKER POST 1400mm
FSP3100 ORANGE REFLEX STEEL MARKER POST 1400mm
FSP3400 WHITE REFLEX STEEL MARKER POST 1400mm
FSP3300 FLAME RED REFLEX STEEL MARKER POST 1400mm
FSP3500 BLACK REFLEX STEEL MARKER POST 1400mm

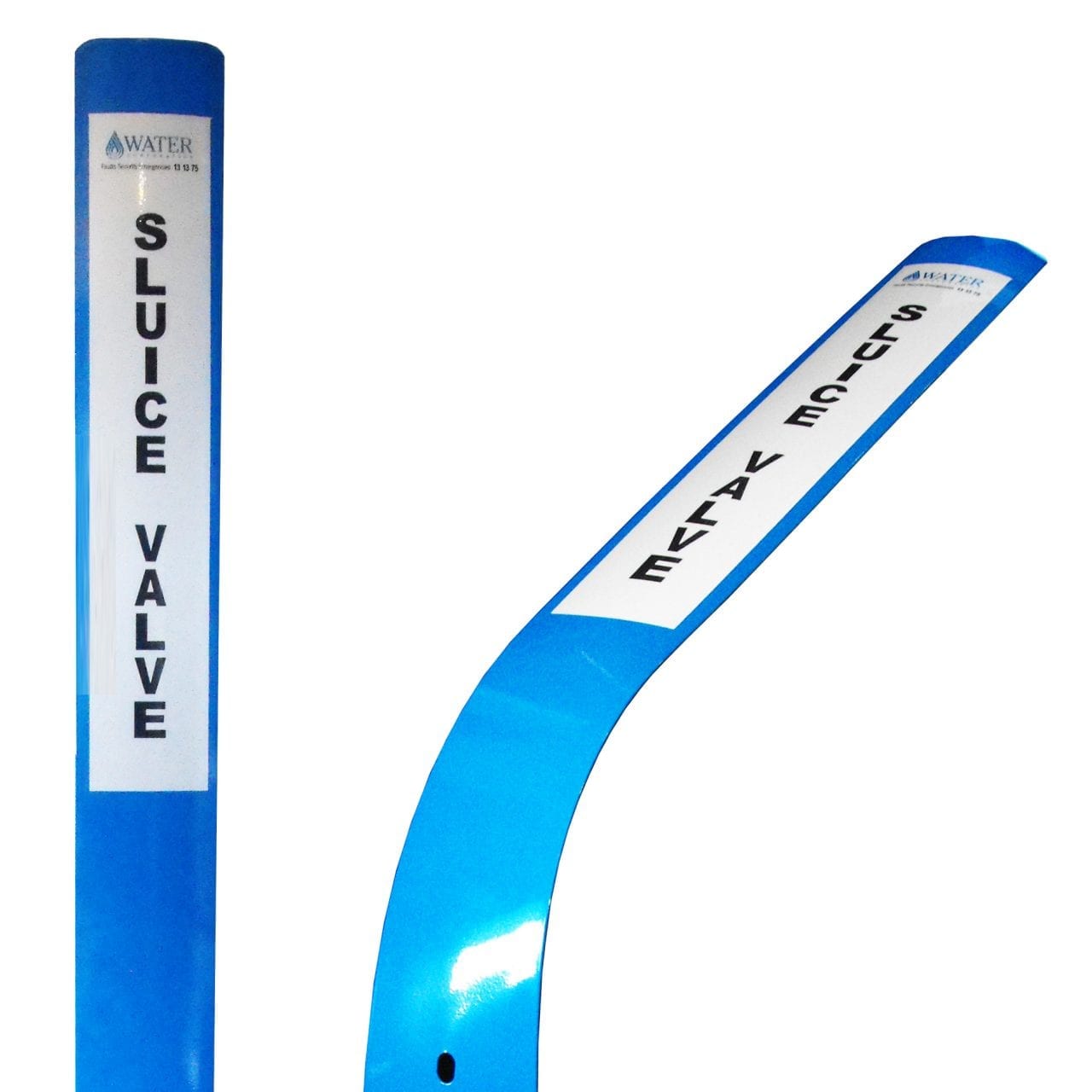

REFLEX FLEXIBILITY

The Reflex, Flexible Steel Marker Post has the capability of rebounding to its vertical position after withstanding multiple direct vehicular impacts.

REFLEX MARKER POST SYSTEM

  • Reflex Flexible Protection
  • Reflex Flexible Strength
  • Reflex Easy lnstallation
  • Reflex Compliance

Advanced Multi Stage Phosphate Treatment Process: Reflex UHFS Flexible Steel Marker Posts are powder coated with an advanced epoxy rich zinc primer, providing superior corrosion protection. Then it is treated with long term weather and light resistant polyester-based finish, providing the post with added durability and UV stabilization.

The Reflex Flexible Steel Marker Post is a new alternative in the flexible marker post range. The Reflex Flexible Steel Marker Post has been developed from UHFS Flexible Steel. A material, which is subjected to a special heat treatment process and, which produces a two-phase structure. Enabling the material to achieve increased strength together with elasticity capabilities.

The Reflex, Flexible Steel Marker Posts can be installed and removed with ease using our patented driving system which includes a modified removal rod and protective guides for better drivability. A specialised driving cap for pneumatic installation is also available. This option suits our pneumatic post driver. The reflex marker posts are easily installed into various ground types. The post also includes an extended barb to provide better ground retention.

Reflex, Flexible Steel Marker Posts have been tested to 1000 hours exceeding relevant specification standards:

• Adhesion (AS1580.408.4)

• Blistering (AS1580.481.1.9)

• Corrosion (AS1580.481.3)

Reflex, Flexible Steel Marker Posts have also been subjected to a minimum of ten impacts and wheel overs at 60-80km per hour and again at 100km per hour. The result of the impact tests showed no damage to the reflex marker post, with minimal damage to the powder coating finish, this was still in good condition and in no need of replacing.

Reflex, flexible steel marker posts have also passed all required tests to meet all state specifications and the Australian standards.

FINALIST

Reflex Marker Post was a finalist in the Swedish Steel Prize 2007

Installation

Petrol Driver Installation
Removal
