PREMIUM QUALITY. EXCEPTIONAL RE-STRAIGHTENING CAPABILITIES.

Our premium grade steel guide post and driving system is of the highest quality and manufactured from high tensile steel. This product has the capability of withstanding multiple impacts and allows exceptional re-straightening capabilities.

Dura-Post Steel Guide Posts are constructed from galvanised steel and are pre-treated before they are powder coated, preventing rust and providing the post with added durability and a longer lifespan. The process has a 10-year gloss retention warranty.

Dura-Post Steel Guide Posts, when knocked over can be re-straightened up to 30 times and if hit at lower speeds more re-straightening efforts can be achieved.

FSG2142
FSG2140
FSG2142 STANDARD STEEL GUIDE POST & ROAD EDGE DELINEATION PRODUCTS
CODE DESCRIPTION

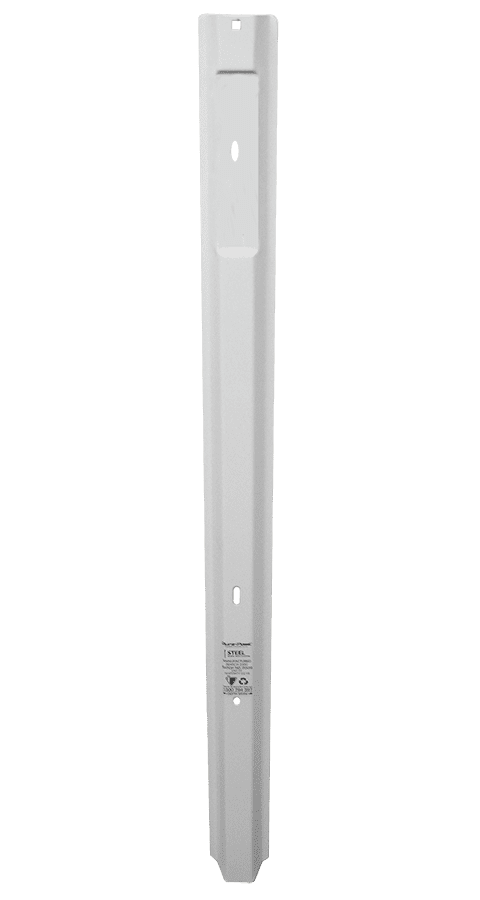

FSG2100 STEEL GUIDE POST STANDARD, LENGTH: 1350mm NO DELlNEATlON
FSG2140 STEEL GUIDE POST STANDARD LENGTH: 1350mm CLASS 1A 5,000mm2 RED/WHITE 50mm X 100mm DELINEATION
FSG2140A STEEL GUIDE POST STANDARD LENGTH: 1350mm CLASS 1A 5,000mm2 AMBER 50mm X 100mm DELINEATION – FRONT ONLY

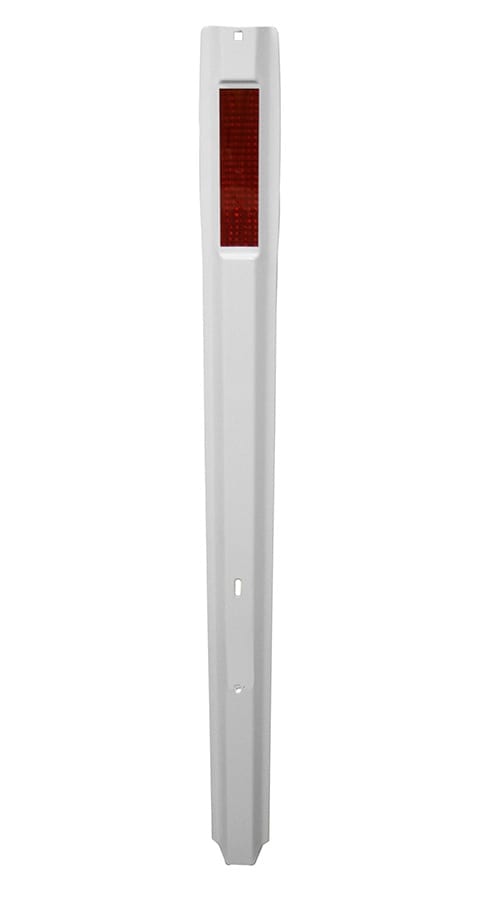

FSG2142 STEEL GUIDE POST STANDARD LENGTH: 1350mm CLASS 1A 10,000mm2 RED/WHITE 50mm X 200mm DELINEATION

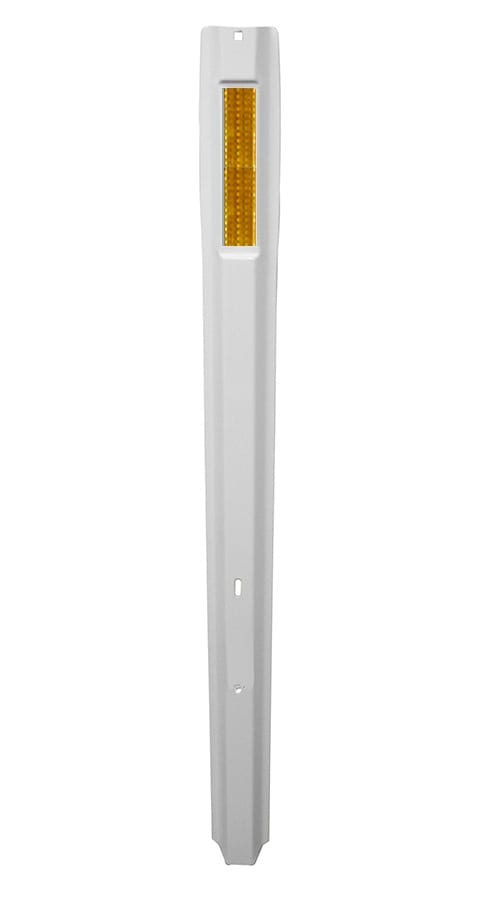

FSG2142A STEEL GUIDE POST STANDARD LENGTH: 1350mm CLASS 1A 10,000mm2 AMBER 50mm X 200mm DELINEATION – FRONT ONLY
FSG2130 STEEL GUIDE POST UNBOXED LENGTH: 1350mm CLASS 1A 5,000mm2 RED/WHITE 50mm X 100mm DELINEATION

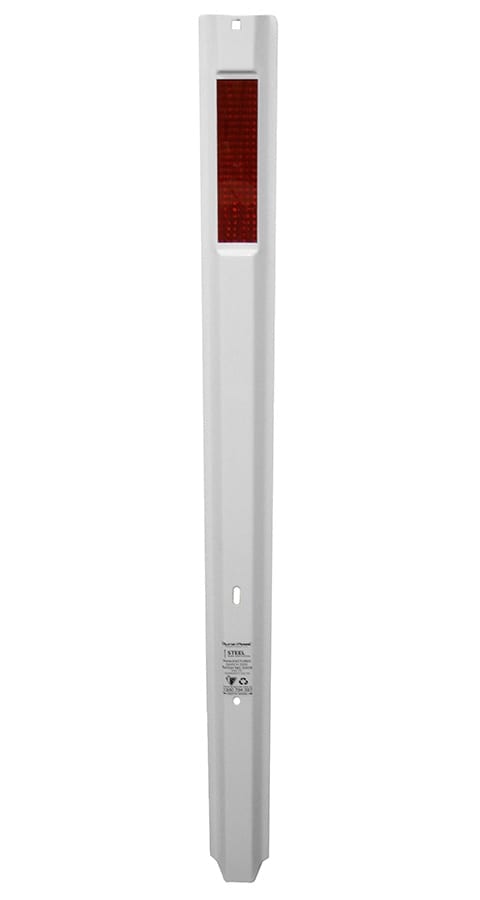

FSG2132 STEEL GUIDE POST UNBOXED LENGTH: 1350mm CLASS 1A 10,000mm2 RED/WHITE 50mm X 200mm DELINEATION
FSG2140 STANDARD STEEL GUIDE POST & ROAD EDGE DELINEATION PRODUCTS
CODE DESCRIPTION
FSG2100 STEEL GUIDE POST STANDARD, LENGTH: 1350mm NO DELlNEATlON
FSG2140 STEEL GUIDE POST STANDARD LENGTH: 1350mm CLASS 1A 5,000mm2 RED/WHITE 50mm X 100mm DELINEATION
FSG2140A STEEL GUIDE POST STANDARD LENGTH: 1350mm CLASS 1A 5,000mm2 AMBER 50mm X 100mm DELINEATION – FRONT ONLY
FSG2142 STEEL GUIDE POST STANDARD LENGTH: 1350mm CLASS 1A 10,000mm2 RED/WHITE 50mm X 200mm DELINEATION
FSG2142A STEEL GUIDE POST STANDARD LENGTH: 1350mm CLASS 1A 10,000mm2 AMBER 50mm X 200mm DELINEATION – FRONT ONLY
FSG2130 STEEL GUIDE POST UNBOXED LENGTH: 1350mm CLASS 1A 5,000mm2 RED/WHITE 50mm X 100mm DELINEATION
FSG2132 STEEL GUIDE POST UNBOXED LENGTH: 1350mm CLASS 1A 10,000mm2 RED/WHITE 50mm X 200mm DELINEATION

STANDARD STEEL

Standard Steel Guide Posts are manufactured from 1.3mm steel and are 1350mm in length, suitable for soft and medium soil types and ideally in low impact areas as their re-straightening ability is less than that of our Premium Steel Guide Posts.

PREMIUM STEEL

Premium Steel Guide Posts are manufactured from 2.0mm steel and are available in three lengths 1350mm for normal situations and for softer soil types or for shoulders where extra length is required, 1500mm and 1650mm lengths are available and all three are suited to be driven into soft, medium and hard soil types including chip seal and bitumen.

TUBULAR STEEL

Manufactured to QLD Main Roads 1356. Dura-Post Tubular Steel Guide Posts are made from C250 pipe 50nb extra light (2.3mm wall thickness) complies with AS1163 coating = hot dipped galvanised, Powder coating =  high-grade powder with a minimum thickness of 75 microns. Posts are pressed so that the top 600mm is a minimum of 80mm wide, and a 5,000mm2 delineator is applied 50mm from the top of the post. Manufactured to QLD Main Roads 1356.

TECHNICAL SPECS

  • FEATURES AND BENEFITS
  • MANUFACTURE
  • INSTALLATION & MAINTENANCE
  • POST HOLE
  • Depth marker and removal hole
  • Can be straightened many times
  • Fire resistance
  • Maintenance free high gloss finish
  • Available in most lengths
  • Recyclable
  • Customised delineation for marker posts
  • No sharp edges
  • 10 year manufacturer’s warranty
  • Highest quality powder coating
  • Made from Australian manufactured G450
    Z350 galvanised high tensile steel
  • Precision roll formed
  • One person installation
  • No boring or digging required
  • Driveable into most shoulders
  • Removable for temporary work
  • Snap-on end caps supplied

The hole at the bottom of the post serves three functions:

1. It is the weakest point allowing the post to bend on impact.

2. It acts as a depth gauge, and

3. it serves as a removal hole when the post requires relocation.

STANDARD STEEL

Guide Posts are manufactured from 1.3mm steel and are 1350mm in length, suitable for soft and medium soil types and ideally in low impact areas as their re-straightening ability is less than that of our Premium Steel Guide Posts.

Installation

Petrol Driver Installation
Removal
