HIGHEST QUALITY, MANUFACTURED FROM PREMIUM MILD TENSILE STEEL.

Dura-Post®Steel Guide Post & Marker Post System is of the highest quality and manufactured from premium mild tensile steel. This product has the capability of withstanding multiple impacts and allows exceptional re-straightening abilities. Dura-Post Steel Guide Posts, when knocked over can be re-straightened up to 30 times and if hit at lower speeds more re-straitening efforts can be achieved.

PREMIUM
ULTRA HIGH STRENGTH
PREMIUM STEEL GUIDE POSTS & ROADSIDE DELINEATION
CODE DESCRIPTION

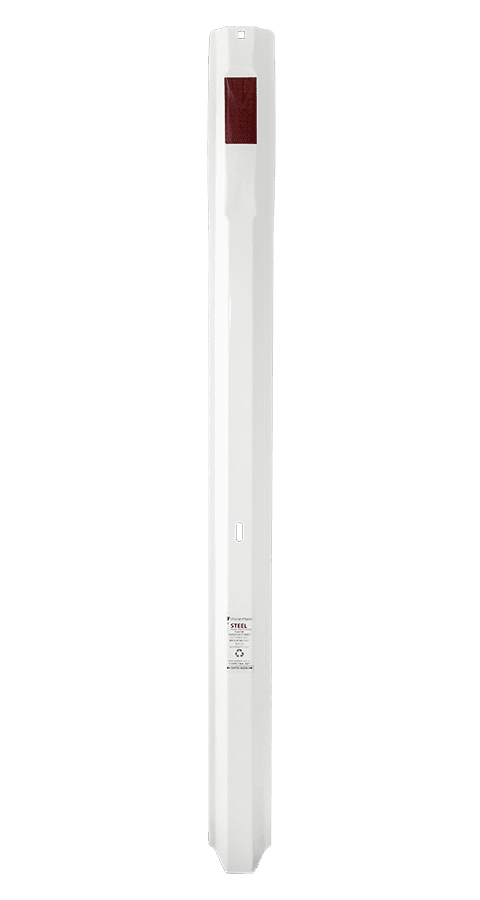

FSG2141 STEEL GUIDE POST PREMlUM LENGTH: 1350mm CLASS 1A 5,000mm2 RED/WHlTE 50mm X 100mm DELlNEATlON

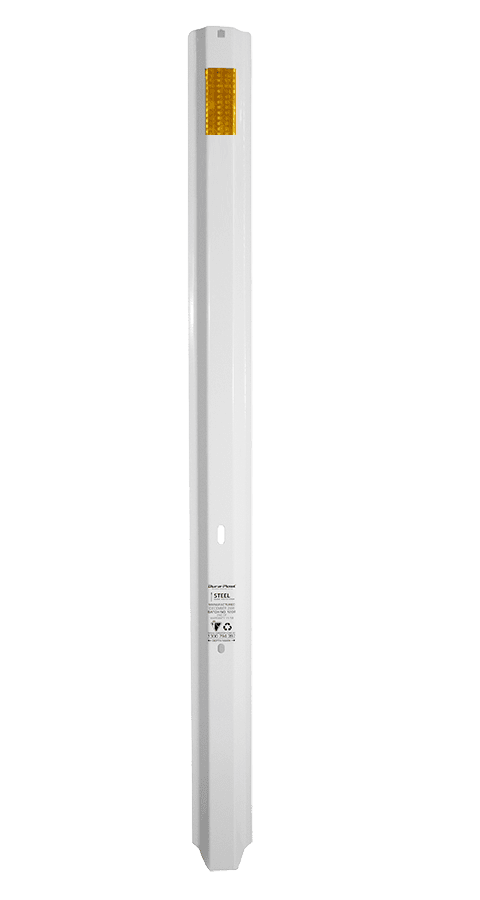

FSG2141A STEEL GUIDE POST PREMIUM LENGTH: 1350mm CLASS 1A 5,000mm2 AMBER 50mm X 100mm DELlNEATlON – FRONT ONLY

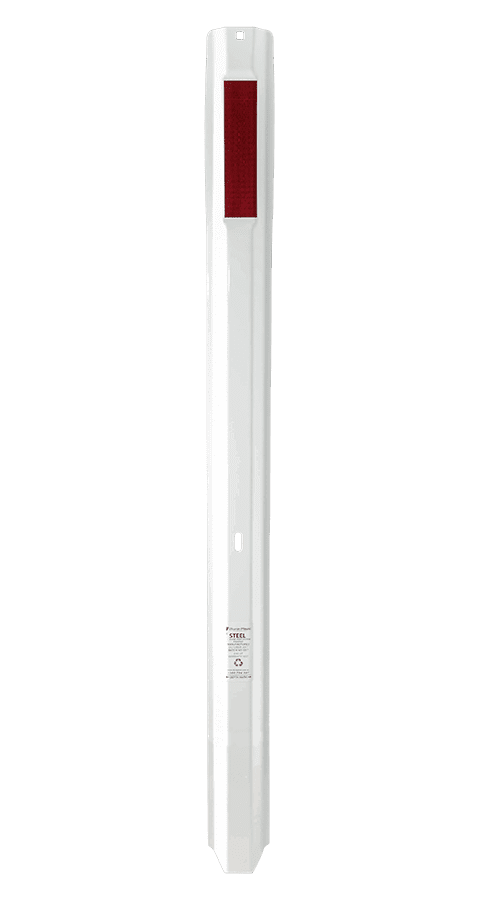

FSG2143 STEEL GUIDE POST PREMlUM LENGTH: 1350mm CLASS 1A 10,000mm2 RED/WHlTE 50mm X 200mm DELlNEATlON

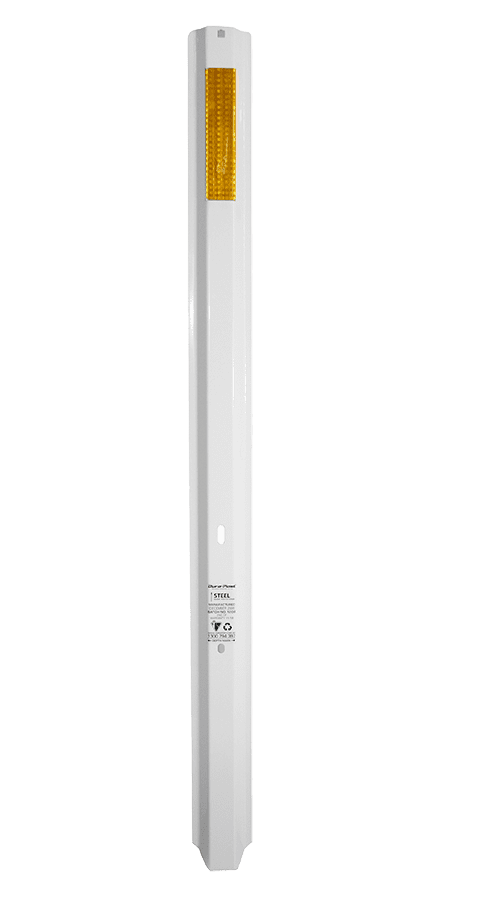

FSG2143A STEEL GUIDE POST PREMIUM LENGTH: 1350mm CLASS 1A 10,000mm2 AMBER 50mm X 200mm DELlNEATlON – FRONT ONLY
FSG2115 STEEL GUIDE POST PREMlUM LENGTH: 1500mm CLASS 1A 5,000mm2 RED/WHlTE 50mm X 100mm DELlNEATlON
FSG2123 STEEL GUIDE POST PREMlUM LENGTH: 1500mm CLASS 1A 10,000mm2 RED/WHlTE 50mm X 200mm DELlNEATlON
FSG2117 STEEL GUIDE POST PREMlUM LENGTH: 1650mm CLASS 1A 5,000mm2 RED/WHlTE 50mm X 100mm DELlNEATlON
FSG2125 STEEL GUIDE POST PREMlUM LENGTH: 1650mm CLASS 1A 10,000mm2 RED/WHlTE 50mm X 200mm DELlNEATlON
ULTRA HIGH STRENGTH STEEL GUIDE POSTS & ROADSIDE DELINEATION
CODE DESCRIPTION
FSG2145 STEEL GUIDE POST – ULTRA HlGH STRENGTH LENGTH: 1350mm CLASS 1A 5,000mm2 RED FRONT/WHlTE BACK 50mm X 100mm DELlNEATlON ALSO AVAILABLE WlTH AMBER DELlNEATlON.
FSG2146 STEEL GUIDE POST – ULTRA HlGH STRENGTH LENGTH: 1350mm CLASS 1A 10,000mm2 RED FRONT/WHlTE BACK 50mm X 200mm2 DELlNEATlON ALSO AVAILABLE WlTH AMBER DELlNEATlON.

PREMIUM STEEL

Premium Steel Guide Posts are manufactured from 2.0mm steel and are available in three lengths 1350mm for normal situations and for softer soil types or for shoulders where extra length is required, 1500mm and 1650mm lengths are available and all three are suited to be driven into soft, medium and hard soil types including chip seal and bitumen.

STANDARD STEEL

Standard Steel Guide Posts are manufactured from 1.3mm steel and are 1350mm in length, suitable for soft and medium soil types and ideally in low impact areas as their re-straightening ability is less than that of our Premium Steel Guide Posts.

ULTRA HIGH STRENGTH STEEL GUIDEPOSTS

Manufactured from 2.0mm High Tensile Steel. Available in three lengths 1350mm for typical situations and softer soil types or for shoulders where extra length is required, 1500mm and 1650mm lengths are available, and all three are suited to be driven into soft, medium and hard soil types including chip seal and bitumen and where high compaction is apparent.

Ultra High Strength Steel Guide Posts can be manually or mechanically installed with Dura-Post installation equipment. UHS Guide Posts are designed to be driven into high compaction areas.

TUBULAR STEEL

Manufactured to QLD Main Roads 1356. Dura-Post Tubular Steel Guide Posts are made from C250 pipe 50nb extra light (2.3mm wall thickness) complies with AS1163 coating = hot dipped galvanised, Powder coating =  high-grade powder with a minimum thickness of 75 microns. Posts are pressed so that the top 600mm is a minimum of 80mm wide, and a 5,000mm2 delineator is applied 50mm from the top of the post. Manufactured to QLD Main Roads 1356.

TECHNICAL SPECS

  • FEATURES AND BENEFITS
  • MANUFACTURE
  • INSTALLATION & MAINTENANCE
  • Fire resistance
  • Maintenance free high gloss finish
  • Available in most lengths
  • Recyclable
  • Customised delineation for all posts
  • 10-year manufacturer’s warranty
  • Powder coating treatment
  • Made from Australian manufactured premium mild tensile steel
  • One person installation
  • No boring or digging required
  • Driveable into most shoulders
  • Removable for temporary work
  • Snap-on end caps supplied

ULTRA HIGH STRENGTH STEEL GUIDEPOSTS

Manufactured from 2.0mm High Tensile Steel. Available in three lengths 1350mm for typical situations and softer soil types or for shoulders where extra length is required, 1500mm and 1650mm lengths are available, and all three are suited to be driven into soft, medium and hard soil types including chip seal and bitumen and where high compaction is apparent.

Ultra High Strength Steel Guide Posts can be manually or mechanically installed with Dura-Post installation equipment. UHS Guide Posts are designed to be driven into high compaction areas.
